Eyelets are pure copper, electroplated with tin unless otherwise specified.

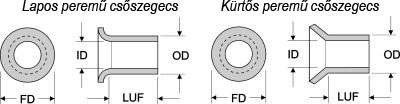

Eyelet Selection Criteria

ID - Inside Diameter
Eyelet inside diameter should be .003"-.020" greater than the component lead diameter.

OD - Outside Diameter
The clearance hole in the circuit board should be .001" to .005" greater than the outside diameter.

LUF - Length Under Flange
The length of the flange should be .02" - 035" greater than the thickness of the circuit board.

FD - Flange Diameter
The flange diameter should be small enough to prevent interference with adjacent pads or circuits.

Back...

Eyelets with Flat Flange

Part No.

ID

OD

LUF

FD

PC Board Thickness

Ball Mill

115-7206

.020

.030

.094

.046

.055 - .065

BM-1

115-7209

.020

.030

.120

.046

.085 - .095

BM-1

115-7306

.030

.040

.093

.060

.055 - .065

BM-2

115-7336*

.033

.047

.093

.080

.055 - .065

BM-3

115-7339

.033

.047

.125

.080

.085 - .095

BM-3

115-7353

.035

.047

.062

.080

.025 - .035

BM-3

115-7366

.036

.046

.093

.076

.055 - .065

BM-3

115-7453

.045

.059

.062

.090

.025 - .035

BM-5

115-7456

.045

.059

.090

.090

.055 - .065

BM-5

115-7459

.045

.059

.125

.090

.085 - .095

BM-5

115-7576

.057

.067

.095

.111

.055 - .065

BM-6

115-7676

.067

.078

.097

.130

.055 - .065

BM-7

All dimensions are in inches plus or minus .003"
* Base material is Brass.

Eyelets with Funnel Flange

Part No.

ID

OD

LUF

FD

PC Board Thickness

Ball Mill

115-8359

.035

.047

.118

.080

.085 - .095

BM-3

115-8431*

.043

.059

.156

.095

.120 - .130

BM-5

115-8559

.055

.069

.126

.095

.055 - .065

BM-6

115-8736

.073

.089

.093

.125

.055 - .065

BM-8
